Cake Paper Tray Forming Machine

Product name：Cake Paper Tray Forming Machine

Item：NRGPF-TF-SS40

Details：

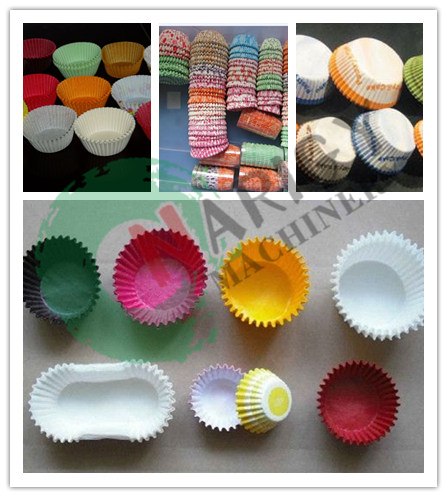

NRGPF-TF-SS40 cake paper tray forming machine pneumatically controls paper jam, paper feed, automatic paper distribution, die hot forming and ejection through manipulator chuck. The machine can produce various cake paper trays by changing molds. Besides, the simple machine adopts mechanical drive by variable frequency speed regulation and automatic heating temperature control, with simple operation, high production efficiency and stable performance.

Technical Parameters

Model	NRGPF-TF-SS40
Paper size (stretching)	φ55-φ130mm
Raw material	Oil-proof paper
Sheet size	30～40g/m2
Production efficiency	20~40 times/minute, 15~20 sheets/time
Power voltage	380V
Power	2.5KW(motor:1.5KW, electric heating:1KW
Supported air source	Working pressure:0.6MPa working air flow:0.3m3/min
Weight	500kg
Packing size	150013001400mm
