Full-automatic Plastic Thermoforming Machine

Product name：Full-automatic Plastic Thermoforming Machine

Item：NRGPF-PT-PF30

Details：

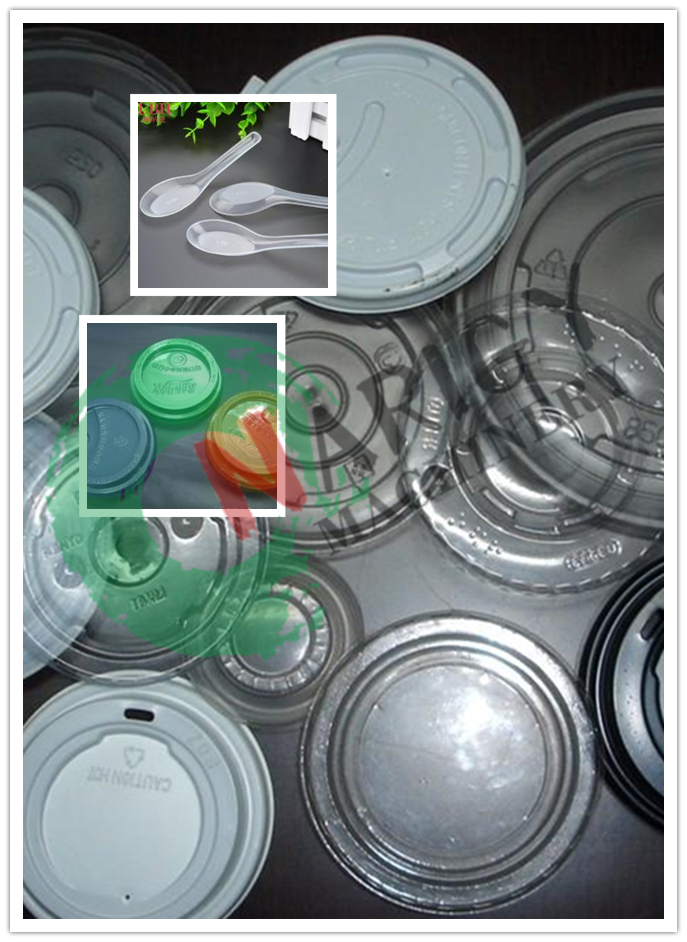

The machine adopts mechanism, electric and gas integrated design, PC automatic control and variable frequency speed regulation. It automatically finishes the whole process from heating, blow molding, product cutting to equal amount (such as 100 pcs) delivery station, can be equipped with PLC human-machine interface according to customer demands, and is mainly used for forming BOPS, HIPS, PS, PVC and PET plastic sheets to produce small spoons and plate covers, such as medical injection tray, oral liquid tray, coffee cover and cola cover.

Technical Parameters

Maximum forming depth	40mm
Maximum forming area (m2)	350*250mm
Punching frequency	10-30/min
Power specification	380V 50Hz
Total power	5KW
Compressed air pressure	0.5~0.7MPa
Compressed air consumption	≥0.22
Overall dimensions	2960mm×750mm×1520mm
Weight	1500kg
