Medium Speed Paper Bowl Machine

Product name：Medium Speed Paper Bowl Machine

Item：NRGPF-PB-SP50

Details：

NRGPF-PB-SP50 medium speed paper bowl forming machine is improved on plain paper cup machine to greatly improve the entire mechanical strength and stability. The machine can produce single-sided or double-sided PE coated drink cups, ice cream cups and other conical vessels through continuous process of oil injection, bottom flushing, heating, knurling, hemming and waft. The machine adopting hot blowing device and high-speed precision intermittent divider is featured by precision and reliability and is a preferred product for renewal of paper cup machine manufacturing industry.

Technical Parameters

Model	NRGPF-PB-SP50

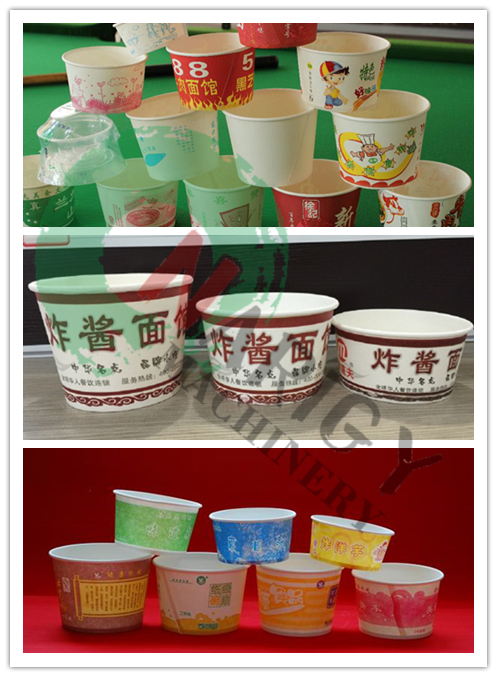

Specification of paper bowl	20~50oz (outer diameter of bowl mouth φ100mm~φ145mm/bowl height 60~110mm) UNI-PRESIDENT 1100, 980, Master Kong 998, 460, etc.
Output	50-65pcs/min
Main motor power	2.2kw
Heating power	8kw
Installed power	15kw
Air Pressure Request	0.4m3/min, 0.5Mpa
Applicable raw paper	190~350g/m2(single/double-sided PE coated paper)
Machine weight	3000kg
Overall dimensions	2300×1550×1650mm
