Three-layer Common-Extruding Rotary Die-head Film Blowing Machine

Product name：Three-layer Common-Extruding Rotary Die-head Film Blowing Machine

Item：NRGPM-TL-SJ45;NRGPM-TL-SJ50;NRGPM-TL-SJ55

Details：

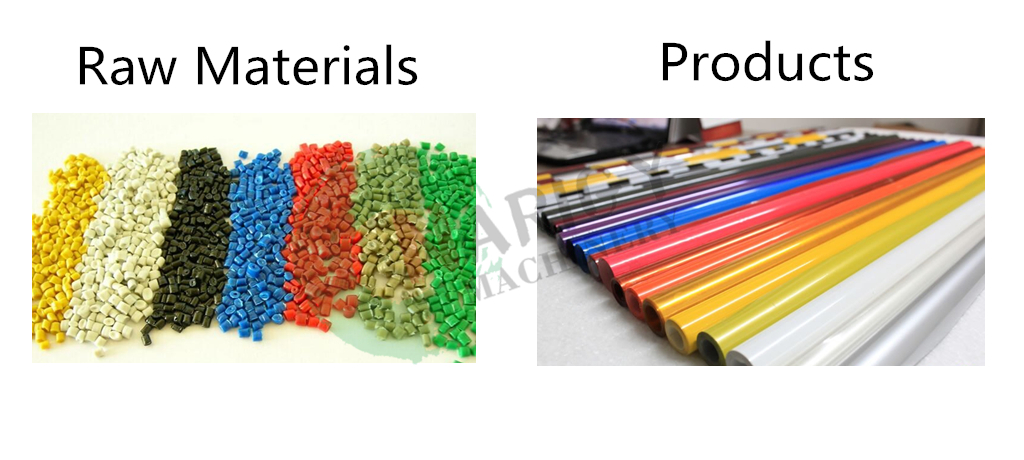

The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rost, insulation oxygen, oil resistive and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.

OPTIONAL EQUIPMENT:
1. AUTO LOADER
2. CORONA
3. DIE ROTARY DEVICE
4. AIR COMPRESSOR
5. GRAVITY METRIC DEVICE

Model	NRGPM-TL-SJ45	NRGPM-TL-SJ50	NRGPM-TL-SJ55	NRGPM-TL-SJ60	NRGPM-TL-SJ65
Screw diameter	Ф45mm	Ф50mm	Ф55mm	Ф60mm	Ф65mm
Screw ratio L/D	30:1	30:1	30:1	30:1	30:1
Screw speed	15-120r/min	15-120r/min	15-120r/min	15-120r/min	15-120r/min
Main motor power	11kw×3	15kw×3	18.5kw×3	22kw×3	30kw×3
Extrusion output(single)	100kg/h	120kg/h	150kg/h	180kg/h	200kg/h
Range of die	Ф200 Ф250	Ф200 Ф250	Ф250 Ф300	Ф500	Ф600
Single-sided thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.03-0.10mm	0.03-0.10mm
Max. Folding width of film	1000mm	1200mm	1500mm	2000mm	2500mm
Electric total capacity	76kw	88kw	102kw	130kw	156kw
Overall dimension	6600×4100×500 0mm	6800×4300×600 0mm	7000×4800×680 0mm	7800×5300×860 0mm	8600×6200×96 00mm
Weight of machine	4.2T	5.3T	6.2T	8.6T	10.6T
